12v 100ah battery 4000 cycle time telecom battery lifepo4 battery golf cart lithium battery, 12v 100ah telecom battery golf cart battery lithium battery

Model number LiFePO4-12.8v -100ah#-#8851
Mark Junlee
Origin China
small orders Accepted

Key Specs/ Special Features:

  • Longer life:
    Offers up to 20 times longer life and five times longer float/schedule life than lead-acid battery,
    helping to minimize replacement cost and reduce total cost of ownership
    Lighter weight :
    Approximately 40% the weight of a comparable lead-acid battery. A “drop in” replacement for lead acid batteries
    higher power : Provides twice the power of lead-acid battery, even high discharge rate, while maintaining high energy capacity
    Wider temperature range: -20℃~60℃
    Superior Security:
    Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Application:

  • The battery can be used for solar/wind storage system to store energy.
  • The battery can be used as backup power for RV, UPS.
  • The battery can power a golf cart.
  • The batteries can also be used for solar street lights.

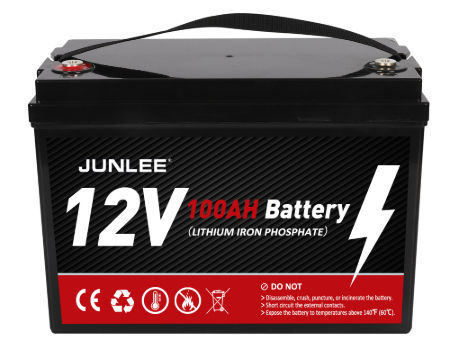

LIFEPO4-12.8v 100ah

12v 100ah battery 4000 cycle time telecom battery lifepo4 battery golf cart lithium power battery supplier

LIFEPO4-12.8v 100ah

12v 100ah battery 4000 cycle time telecom battery lifepo4 battery golf cart lithium battery

Longer life:
Offers up to 20 times longer life and five times longer float/schedule life than lead-acid battery,
helping to minimize replacement cost and reduce total cost of ownership
Lighter weight:
Approximately 40% the weight of a comparable lead-acid battery. A “drop in” replacement for lead acid batteries
Higher Power: Delivers twice the power of lead acid battery, even high discharge rate, while maintaining high energy capacity
Wider temperature range: -20℃~60℃
Superior Security:
Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

specification

Electric

Characteristics

Nominal voltage 12.8V
Nominal capacity 100Ah (C5.25℃)
Energy 1280Wh
Internal resistance ≤150mΩ
Life cycle ≥4000cycles 1C 100% DOD
Self-discharge month
Charging efficiency 100% 0.2C
Dischar’s Efficiency 96-99% 0.5C
Standard fees Loading mode

14.8±0.2V

Load cut-off voltage

0.2C charge to 14.8V, then 14.8V charge to 0.02C cutoff

Charging current 50A
Max charging current 100A
direct current 50A
standard discharge Max pulse current 300A(
Discharge cut-off voltage 10V
Continuous discharge current 100A
Environment Storage temperature 0℃ to 40℃ (32F to 113F) 60±25% Relative Hum
Charging temperature 0℃ to 45℃ (32F to 113F) 60±25% relative humidity
Discharge temperature _20℃ to 60℃ (32F to 113F) 60±25% relative humidity
Mechanical Cell & Method 3.2V 25AH-4S4P
Plastic box abs
Dimensions 330*173*220mm
Weight 15kg
Terminal m8
Protocol No

Product certificates

Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108053964C
Date of issue 2021/08/04
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/04
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108053965C
Date of issue 2021/08/04
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/04
Certificate standard THIS
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108164218C
Date of issue 2021/08/04
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/04
Certificate standard TR
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108164218E
Date of issue 2021/08/12
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/12
Certificate standard TR
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108053964E
Date of issue 2021/08/12
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/12
Certificate standard TR
Certificate Image

Click on the image to see a larger one

Certificate number ZKT-2108053965E
Date of issue 2021/08/12
Issued by Shenzhen ZKT Technology Co., Ltd
Expiration date 2025/08/12

To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.

Delivery Information

FOB port Shenzhen
Lead time 15–20 days
Weight per unit 16.0 kg
Dimensions per unit 33.0 x 17.3 x 22.0 centimeters
US HTS code 8507.60.00 90
Units per export carton 1.0
Export Carton Dimensions 33.3 x 17.5 x 22.4 centimeters
export carton weight 1 Kilograms

Main export markets

– Central/South America

– North America

– Western Europe

Download more information about this product
